blown film extrusion with 2 colors flexo printing machine in line

blown film extrusion with 2 colors flexo printing machine in line

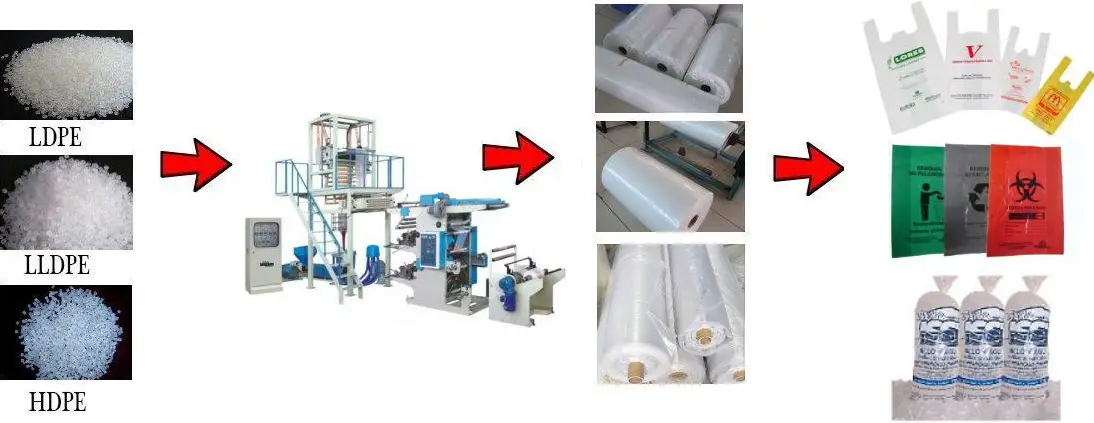

The combination of blown film extrusion with a 2 colors flexo printing machine in line offers a cost-effective option for individuals aiming to enter the film manufacturing sector. This setup connects a film blowing system with a flexographic printing machine, allowing for the concurrent production and printing of film, which notably reduces labor costs.

blown film extrusion with 2 colors flexo printing machine in line

Model	SJ50-YT2600	SJ50-YT2800	SJ60-YT21000
Materials	LDPE.HDPE.LLDPE	LDPE.HDPE.LLDPE	LDPE.HDPE.LLDPE
Max film width	600mm	800mm	1000mm
Max Printed film Width	560mm	760mm	960mm
Printing colors	2color	2 color	2color
Film Color	Transparent,Black,Red,White,blue…bag color changed by masterbatch
Usage	Plastic Shopping Bag,T-shirt bag,trash bag,packing film,table cover,shrink film
Screw Diameter	50mm	55m	60mm
Screw L/D Ratio	28:1	28:1	28:1
Extruder Motor	11Kw	15Kw	18.5Kw
Max Capacity	35kg/h	50Kg/h	65Kg/h
Film I lead DIA	φ60、φ 100	φ80、φ150	φ100、φ200
Film Width	600mm	800mm	1000mm
Film Thickness	0.01-0.10mm	0.01-0.10mm	0.01-0.10mm
Max Printing length	191-1200mm	191-1200mm	191-1200mm
Total Power	28Kw	32Kw	40kw
Machine Weight	3.5T	4T	5T
Machine Size	6000 x 2400 x 4000mm	6200 x 2600 x 4300mm	6400 x 2800 x 4800mm
Power Voltage	220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz…)
Paper Diameter	58mm,76mm
Machine Working Time	24 hours * 7 days
Warranty	1 year
Technical Assistance	Engineers available to service machinery overseas

※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.

Shipment

shipment of plastic bag machine

If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.

If you buy one container machines,we will pack machine with stretch film and loading container directly (FCL full container load).



instalment service

install machines in customer factory

Machine parts supplier

Our Main parts cooperator as following brand,but standard parts all made from China.

Material supplier

How To Find Polyethelene For Blown Film Extrusion.
Extrusion Film Extrusion use Polyethelene,such as

Low Density Polyethylene(LDPE),High Density Polyethylene(HDPE) and Linear Low Density Polyethylene(LLDPE),Polypropylene(PP).
Below are big brand material supplier in the world,they open office all over the world,you can check them in local market.
1.Sabic Saudi Basic Industries Corporation
2.ExxonMobil Chemical Company
3.Dow Chemical Company
