Four Side Plastic Bag Making Machine

Four Side Plastic Bag Making Machine

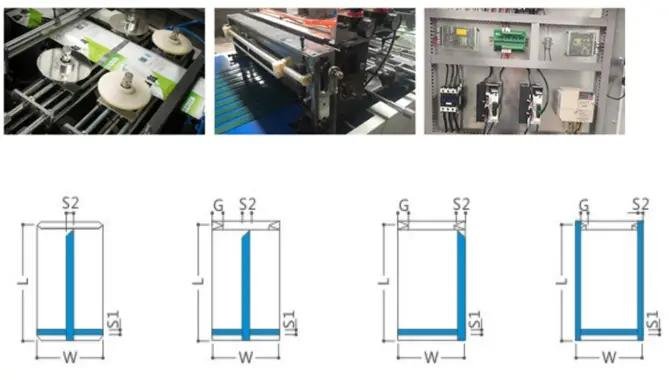

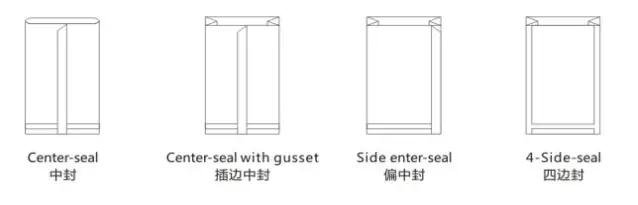

The Four Side Plastic Bag Making Machine is designed to manufacture middle sealing bags, four side bags, and edge sealing bags.

This machinery operates via a centralized PLC control system, enhancing human-machine interaction and ensuring reliable performance alongside straightforward operation and maintenance. Users can effortlessly toggle between Chinese and English language interfaces.

It incorporates a constant automatic tension control system for unwinding, an EPC edge position controller, and an AC inverter that maintains speed consistency during the automatic feeding of materials. The apparatus employs an imported double servo-motor for controlling material movement.

The main motor, which is responsible for the sealing and pressing actions, is equipped with an inverter. A PID control system governs the temperature of the sealing bars, utilizing non-contact automatic controls and centralized settings that are accessible through the man-machine interface.

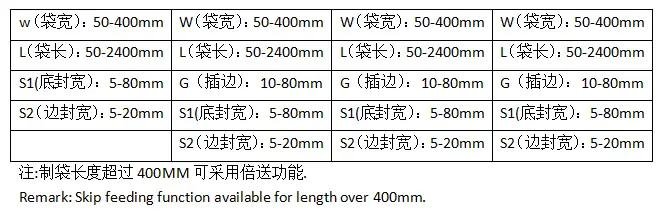

Main Technical Variables:

	KDZD-C400
Max.Diameter of roll material	600mm
Max.Width of roll material	850mm
Max.Capacity	160 section/min（pieces/mm）
Max.Mechanical speed	45meter/min
Max.Bag-making Width	400mm
Bag-making Length	50-2400mm
Total Power	25Kw
Weight	4500kg
Outline Dimension	10500x1700x1900mm

If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.

Our Main parts cooperator as following brand,but standard parts all made from China.
