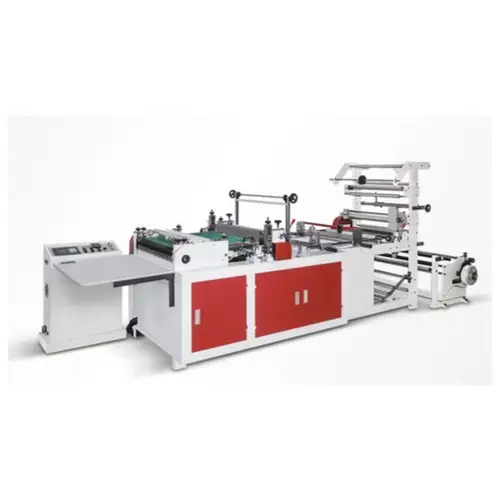

Side Sealing Bag Making Machine

Side Sealing Bag Making Machine

The Side Sealing Bag Making Machine is engineered for the heat sealing and cutting of bags crafted from materials such as BOPP, PP, and PE. It is especially proficient in producing flower bags, triangle bags, and candy bags.

Notable features comprise:
– An inverter-controlled motor that adjusts the machine’s speed.
– A touch screen interface for managing both the speed and length of the bags.
– The incorporation of a photocell, enabling the production of printed and unprinted bags.
– An integrated hole punch capability.
– An optional folding mechanism.

This machine accommodates materials including BOPP, PP, PE, POF, and CPP, making it suitable for heat sealing and cutting. It can produce a diverse range of products such as clothing bags, socks bags, towel bags, bread bags, ornament bags, underwear bags, stationery bags, bags for electric components, as well as bags for bamboo products and woodworking items.

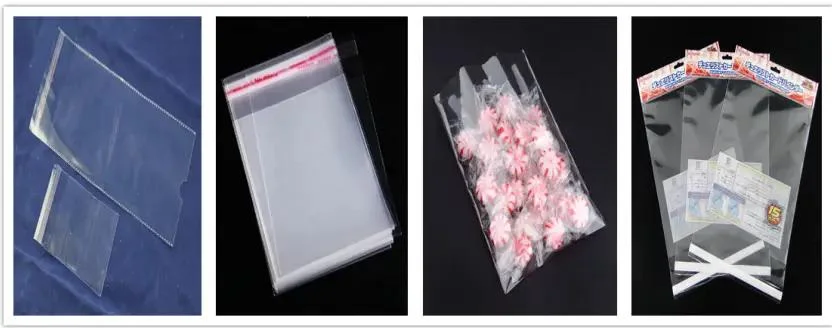

BOPP bag

Main Technical Variables:

Model	RQL-600	RQL-800	RQL-1000	RQL-1200	RQL-1400	RQL-1500
Width of sealing & cutting	580mm	750mm	950mm	1150mm	1350mm	1450mm
Length of sealing &cutting	900mm	900mm	900mm	900mm	1000mm	1000mm
Speed of bag-making	40-180pc/min	40-180pc/min	40-180pc/min	40-150pc/min	40-150pc/min	40-150pc/min
Main motor	1.1kw	1.1kw	1.5kw	1.5kw	2.2kw	2.2kw
Weight	700kg	800kg	900kg	1000kg	1400kg	1500kg
Outline dimension	3.6*1.1*1.7M	3.6*1.2*1.7M	3.6*1.5*1.7M	3.6*1.6*1.7M	3.6*1.8*1.7M	3.6*1.9*1.7M
Kind of Bag	BOPP bag,Bread Bag,Garment Bag, stationery Bag,DVD Bag,CD bag
Bag of Material	HDPE、LDPE、PP、OPP、BOPP
Power Voltage	220V
Machine Working Time	24 hours * 7 days
Warranty	1 year

If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.

Our Main parts cooperator as following brand,but standard parts all made from China.
