Three Layers Air Bubble Film Making Machine
Inquiry Basket
OEM：
Available
Sample：
Available
Port：
Ningbo
Payment：
PayPal,VISA,MasterCard,Western Union,L/C,T/T
Place of Origin：
China
Shipping：
Sea freight · Land freight · Air freight
Supply Ability：
300 unit per Year
Product Details
Three Layers Air Bubble Film Making Machine
The Three Layers Air Bubble Film Making Machine, also known as air bubble film extrusion machinery, is meticulously designed for the fabrication of bubble film. It primarily utilizes Low Density Polyethylene (LDPE) or recycled LDPE as its principal material. This machine comes in several widths, namely 1200mm, 1500mm, 2000mm, 2500mm, and 3000mm, and it produces bubble film composed of two layers. It offers various power supply options, including 220V, 380V, 440V, or 480V, and can manufacture bubble film in colors such as red, blue, and yellow. Furthermore, the design of the Three Layers Air Bubble Film Making Machine is characterized by its simplicity.

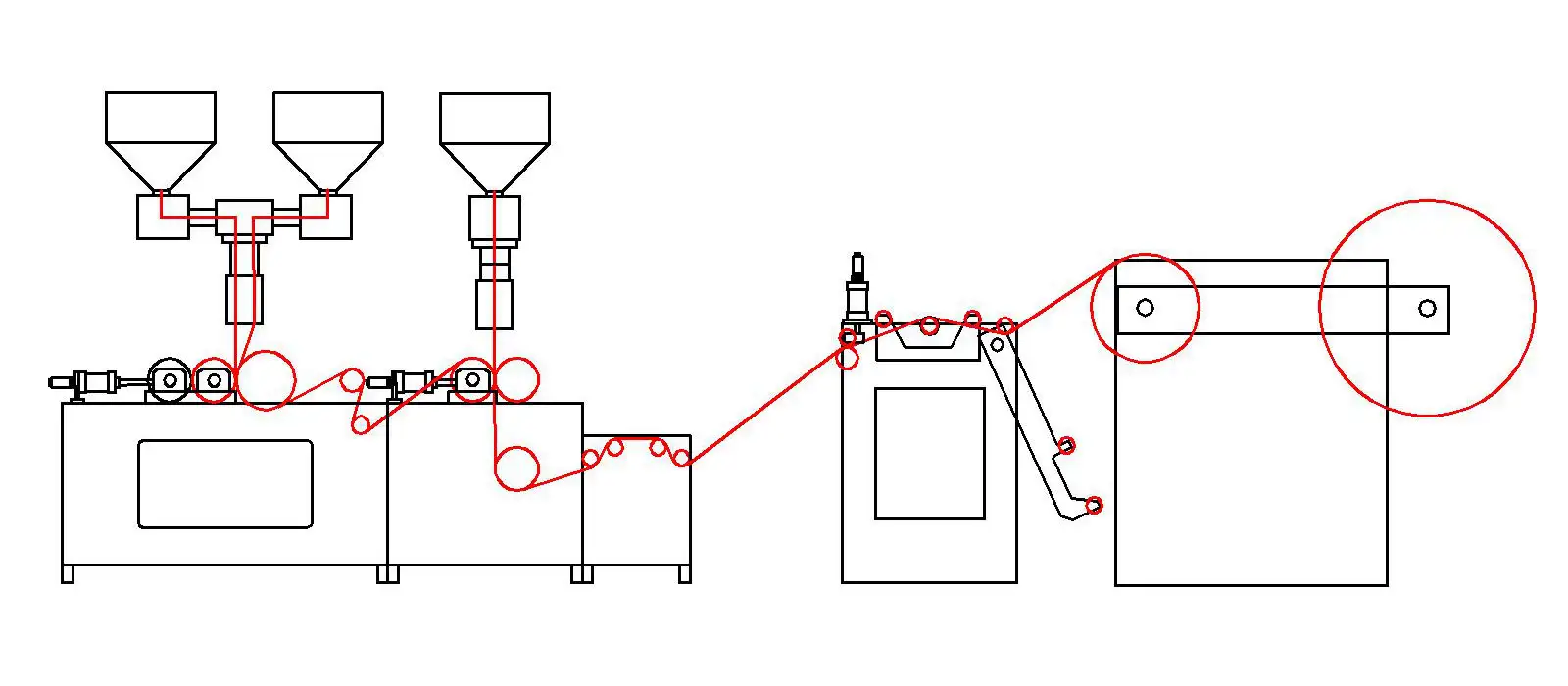

Three Layers Air Bubble Film Machine
Technical Variables:
| Model | KDPEG-1000 | KDFPG-1200 | KDPEG-1500 |
| Raw Material | LDPE,recycle material,masterbatch and additives material | ||
| Screw Diameter | φ65mm+φ50mm | φ75mm+φ60mm | φ90mm+φ70mm |
| Bubble film Max. width | 600mm | 1200mm | 1500mm |
| Bubble Film Layer | 3 layers,4 layers,5 layers | ||
| Bubble Film Color | Transparent,Black,Red,White,blue…bag color changed by masterbatch | ||
| Output | 55kg/h | 70kg/h | 90kg/h |
| Total power | 75kw | 82kw | 98kw |
| L/D Ratio Of Screw | 28：1 | 28：1 | 28：1 |
| Water Consumption | 0.5m3/h | 0.5m3/h | 0.5m3/h |
| Machine Weight | 3.5 | 4.5 | 5 |
| Power Voltage | 220V,380V,440V(Customized based on request (For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz…) | ||
| Air Shaft Diameter | without paper core ,58mm,76mm | ||
| Machine Working Time | 24 hours*7 | ||
| Warranty | 1 year | ||
| Technical Assistance | Engineers available to service machinery overseas | ||

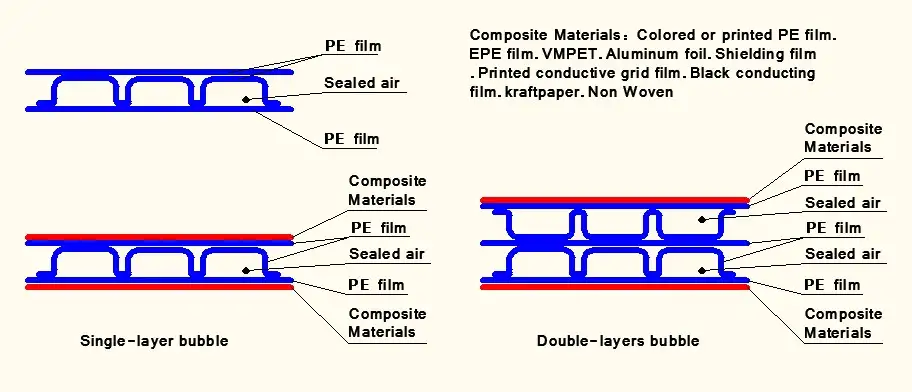

two layers air bubble film machines
air bubble wrap film bubble bag
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.
This air bubble film making machine is ideal for businesses looking to optimize their manufacturing process and enhance productivity.
This equipment is designed to enhance productivity and efficiency in manufacturing.

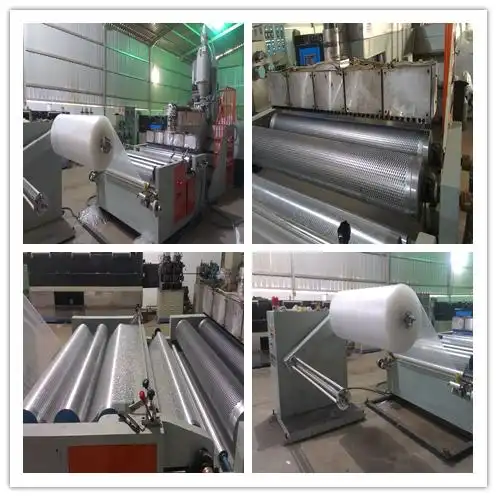

Bubble Film Machine Working in Customer Factory
two layers air bubble film making machine

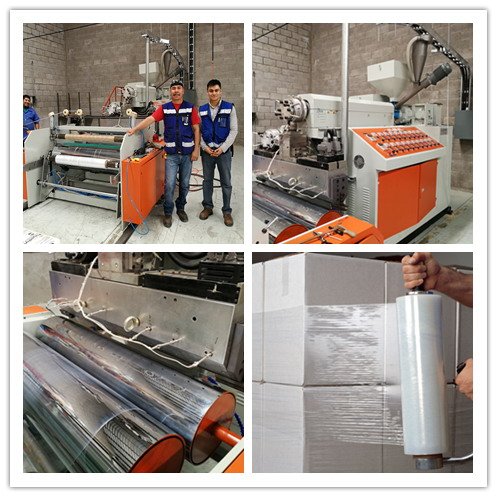

Install Strech Film Machine in Customer Factory
install machines in customers factory
