3 Layers Blown Film Extrusion

Three layers blown film extrusion
The adoption of a three layers blown film extrusion system, which includes three extruders, motors, gearboxes, and inverters, enables the production of a three-layer film, such as ABC three-layer co-extrusion, using a plastic film blowing apparatus. This setup is proficient in manufacturing films from HDPE, LLDPE, and LDPE materials. By utilizing multi-layer co-extrusion technology, the system greatly enhances the strength and durability of the resulting film. The design employs a single main extruder to provide material for both the inner and outer layers, thereby minimizing the necessity for additional extruders, leading to improved energy efficiency and reduced consumption levels.

In summary, our three layers blown film machinery is meticulously engineered to optimize production efficiency, elevate product quality, and ensure cost-effective operations, making it a valuable investment for businesses in the film production sector.

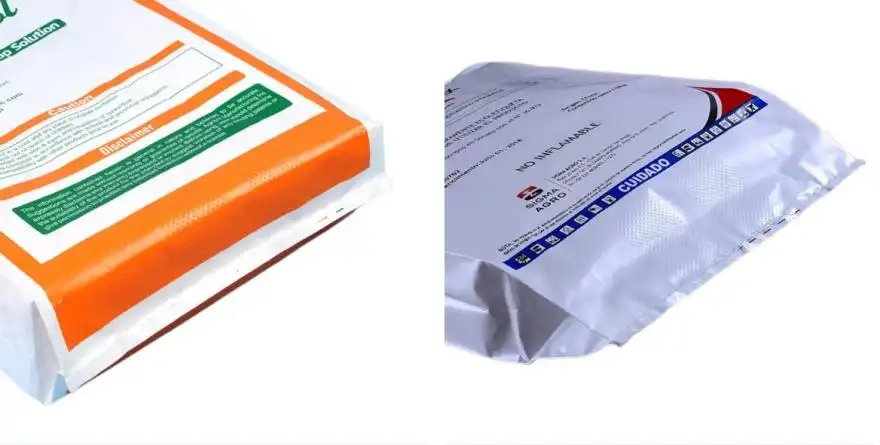

Heavy duty bag

Heavy Duty Plastic Bag Machine

Technical Variables
型号	Mode	3SJ-1100	SJX3-1350	SJX3-1700
螺杆直径	screw diameter	φ55×2  φ60×1	φ60×2  φ65×1	φ65×2  φ70×1
螺杆长径比	screw ratio L/D	28:1	28:1	28:1
螺杆转速	screw speed	15-120r/min	15-120r/min	15-120r/min
主电机功率	main motor power	15kw×218.5kwx1	18.5kwx222kwx1	22kw×230kwx1
单挤出机产量	extrusion output(single	80kg/h	100kg/h	140kg/h
模口规格	ange of die-tip	φ150  φ220	φ180  φ250	φ250  φ350
薄膜厚度单面	single layer thickness of film	0.02-0.15mm	0.02-0.15mm	0.02-0.15mm
薄膜最大折径	max layflat width of film	1000mm	1200mm	1500mm
电器总容量	nstallation capactity	90kw	105kw	120kw
外形尺寸	overall dimension	6600×4100×5800	6800×4300×6000	7000×4800×7500
机器重量	weight of machin	5.5T	6.2T	7.5T

Optional Device:

1)Auto Loader
2)Air Compressor
3)Rotary Die Head
4)Double Side Winder(Back to back winder)
5)Up and Down
6)Embossing Cylinder
7)Air Shaft
8)Masterbatch Dosing device
9)Automatic Winder Changer
10) Corona treatment
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.

Shipment

shipment of plastic bag machine

If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.

If you buy one container machines,we will pack machine with stretch film and loading container directly (FCL full container load).



instalment service

install machines in customer factory

Machine parts supplier

Our Main parts cooperator as following brand,but standard parts all made from China.

Material supplier

How To Find Polyethelene For Blown Film Extrusion.

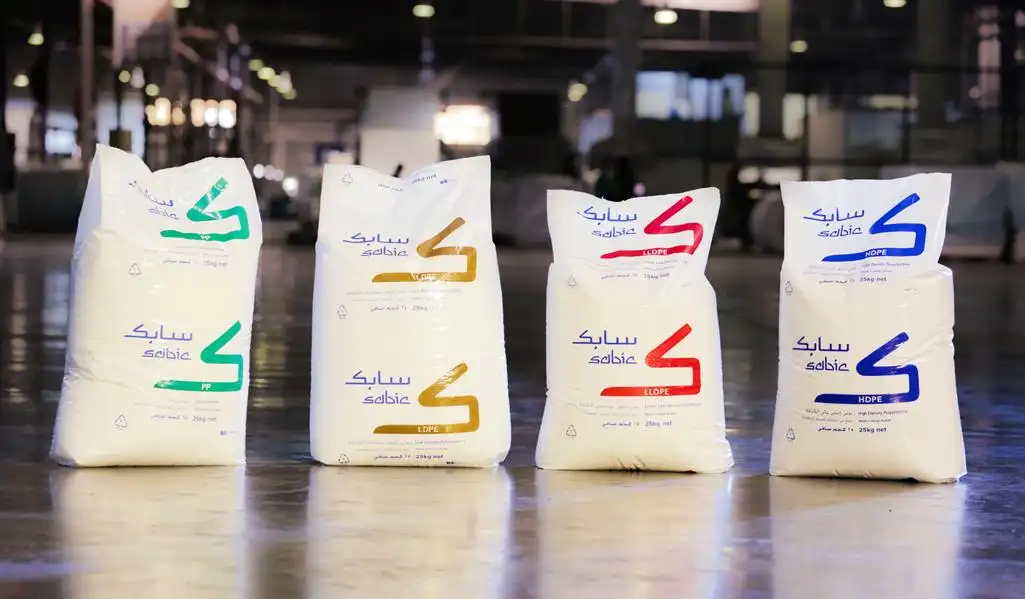

Extrusion Film Extrusion use Polyethelene,such as

Low Density Polyethylene(LDPE),High Density Polyethylene(HDPE) and Linear Low Density Polyethylene(LLDPE),Polypropylene(PP).
Below are big brand material supplier in the world,they open office all over the world,you can check them in local market.
1.Sabic Saudi Basic Industries Corporation
2.ExxonMobil Chemical Company
3.Dow Chemical Company
